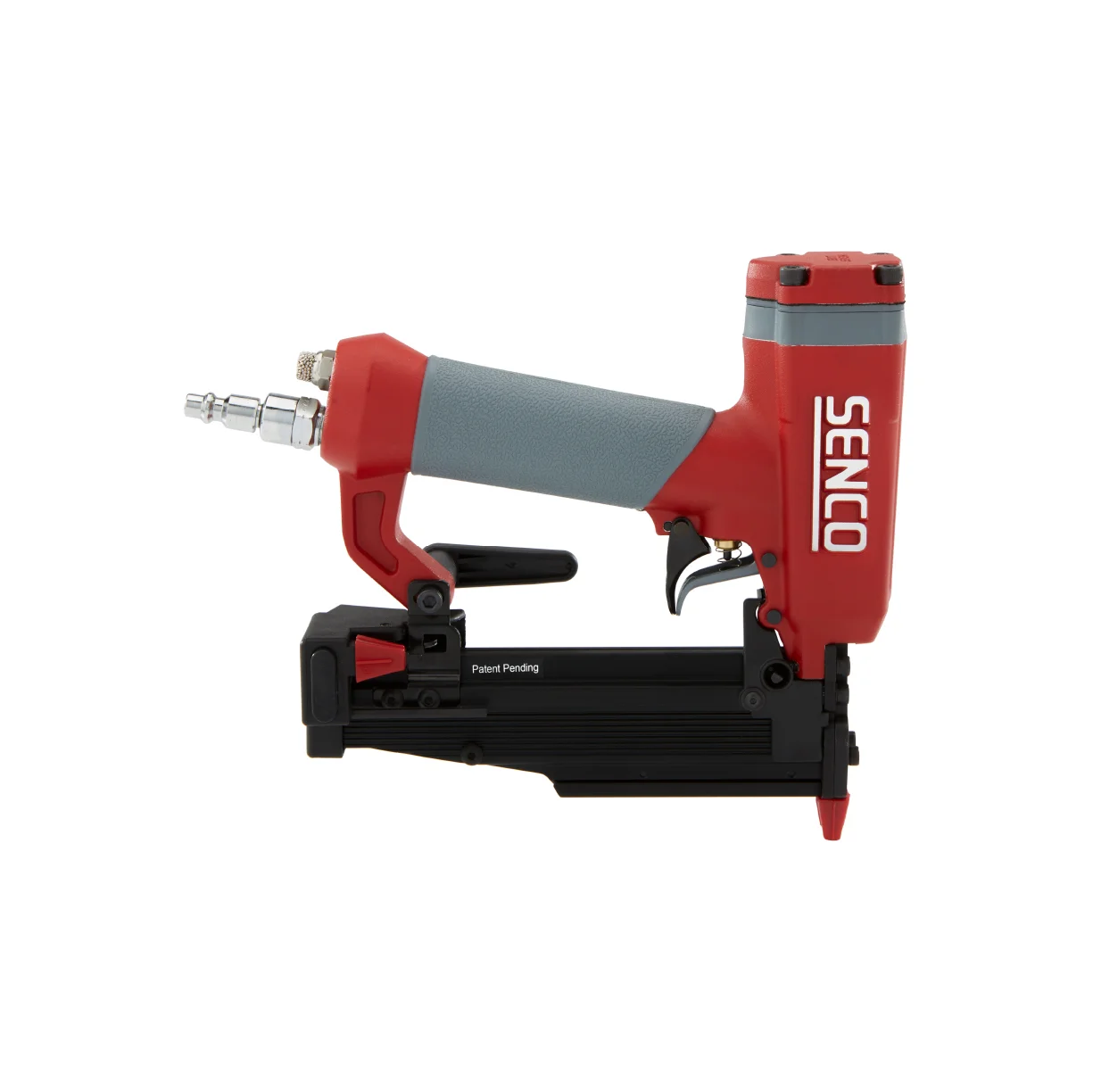

1-3/8” 23 GAUGE PINNER

Degree/Gauge Icon
  • NEVERLUBE® oil-free design
  • Magazine automatically adjusts for fastener length
  • Ergonomic angled “pistol-grip” handle
  • Ultra-narrow nosepiece
  • Reversible belt hook
Featuring SENCO’s NEVERLUBE® oil-free design, the tool never needs to be lubricated, eliminating stains to the work surface. SENCO’s 1-3/8” 23-gauge pin nailer allows you to fasten intricate millwork, casing, and other pieces of trim without splitting or requiring any touch up work. This 23-gauge headless pinner drives 1/2” to...
read more

1-3/8” 23 GAUGE PINNER

Features
1

NEVERLUBE® OIL-FREE DESIGN

Maintenance-free operation, eliminating the risk of oil spillover onto the work surface

2

MAGAZINE ADJUSTS TO FASTENERS

Automatically conforms to fit different pin lengths

3

ERGONOMIC ANGLED “PISTOL-GRIP” HANDLE

Improves control of the tool for comfortable all-day operation

4

ULTRA-NARROW NOSEPIECE

Easy access to tight corners and other hard to reach areas

5

REVERSIBLE BELT HOOK

Mounts to either side of the tool for right or left handed use

6

LAST NAIL LOCKOUT

Prevents dry-firing

7

REAR EXHAUST WITH EMBEDDED MUFFLER

Includes ¼” swivel air plug

8

LOW LOAD INDICATOR

Shows when it’s time to reload (on reverse side of tool)

9

DUAL TRIGGER

Added safety precaution to prevent accidental fires

Applications
  • Fine woodworking
  • Molding and decorative trim

SPECIFICATIONS

  • Item #: TN11G1
  • Tool Weight: 2.41 lbs (1.09 kgs)
  • Height: 7.8" (198 mm)
  • Length: 8.57" (218 mm)
  • Width: 2.6" (66 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Sequential Dual Trigger
  • Capacity: 100
  • Diameter: 0.0267"
  • Range: 1/2" - 1-3/8"
  • Power Type: Pneumatic
  • Operating Pressure: 70-100 PSI (4.8 - 6.9 Bar)
  • Air Consumption: 1.1 (60 CPM) SCFM
  • Air Inlet NPT: 0.25"
  • Max Pressure: 100 psi
  • Includes: Case, Swivel Air Plug, Wrench

FASTENERS

Compatible Fasteners
Type: CZ08EAAR
Gauge: 23
Range: 1/2" - 1-3/8"
Collation: Straight Strip
Learn More

How to Choose the Right Nail for Your Woodworking Project

Selecting the right nail for your woodworking project depends on the specific needs of the task at hand. For versatile, all-purpose use, brad nails are an excellent choice. For more robust, heavy-duty projects, finish nails provide the necessary strength. And for delicate, precise work, pin nails offer the subtlety and finesse needed to achieve a flawless finish.
