2" 5000 RPM Cordless Collated Screwdriver

  • Patented corner-fit feed system
  • Detachable feed system to expose bit for quick reversing
  • 5000 RPM high speed brushless motor
  • Precise depth of drive adjustment with depth lock
  • Quick slide button bit change
Powered by an efficient brushless motor, this high speed collated screw gun includes an extended life 4.0Ah battery and a quick release feed system with our patented corner fit technology. The DS225-18V also features feed on return - the next screw is aligned with the bit for better line of...
read more

DS225-18V

2" 5000 RPM Cordless Collated Screwdriver

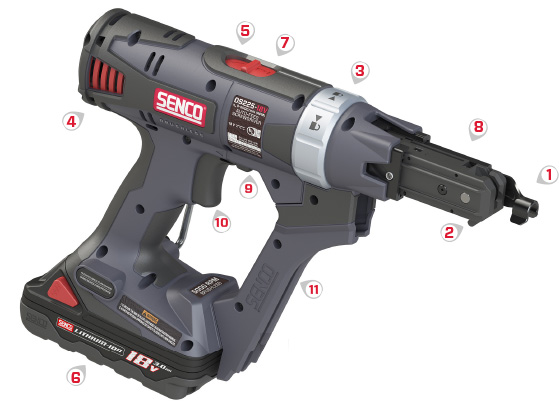

Features
1

CORNER-FIT FEED SYSTEM

Improved line of sight and better corner access

2

FEED ON RETURN

Screws are in place before you drive for faster and more consistent performance

3

REMOVABLE FEED SYSTEM

Detachable feed system for easier reversing

4

HIGH SPEED BRUSHLESS MOTOR

Provides increased performance and battery life with reduced size

5

ADJUSTABLE DEPTH-OFDRIVE WITH DEPTH LOCK

For consistent flush drive or countersink (knob is on the reverse side, not shown)

6

EXTENDED LIFE 4.0AH LI-ION BATTERY

Uses latest cell technology for increased power and capacity

7

QUICK SLIDE BIT RELEASE

Easily insert or remove bits

8

1”-2” TOOL FREE ADJUSTABLE NOSE PIECE

Single nosepiece for wood and drywall applications with easy to read length markings

9

QUICK TOGGLE REVERSE SWITCH

Easily switch between forward and reverse

10

VARIABLE SPEED TRIGGER

Change RPMs for self-tapping screws into steel

11

PATENTED SCREW GUIDE

Prevents screw binding for consistent feeding

Applications
  • For drywall (into wood or light gauge steel studs)
  • Subfloor
  • Sheathing
  • Cement Board
  • Underlayment

SPECIFICATIONS

  • Item #: 10A0002N
  • Tool Weight: 5.54 lbs (2.51 kgs)
  • Height: 9.59" (243.59 mm)
  • Length: 13.66" (346.96 mm)
  • Width: 3.36" (85.34 mm)
  • Warranty: 5 years
  • Battery: 4.0Ah 18V Li-Ion Battery
  • Fasteners Per Charge: 3000
  • Technology: DURASPIN
  • Trigger Type: Variable with Lock
  • Range: 1" - 2"
  • Screw Diameteres: #6 - #8
  • RPM: 5000
  • Includes: (2) Drive Bits EA0297, EA0298, 4.0Ah Li-Ion Extended Life Battery, Charger, and Storage Bag

Bits

Compatible Bits

EA0297Phillips Bit

EA0298Square Bit

EA0299Rex Bit

FASTENERS

Compatible Fasteners
Application: Drywall to Wood
Diameter: #6
Range: 1-5/8
Thread: Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Application: Underlayment
Diameter: #7
Range: 1
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Sharp
Head: Trim Head + Nibs
Application: Cement Board
Diameter: #8
Range: 1-1/4" - 2"
Thread: High Low
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Spoon
Head: Wafer + Nibs
Application: Drywall to Wood
Diameter: #6
Range: 1-1/4" - 2"
Thread: Coarse
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Application: Underlayment
Diameter: #7
Range: 1-1/4
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs
