10C0002N

DS322-18V

3" 2500 RPM Cordless Collated Screwdriver

SHARE Facebook Share Twitter Share Linkedin Share Print

Patented corner-fit feed system
Detachable feed system to expose bit for quick reversing
Selectable 2500/1600 RPM high torque brushless motor
Precise depth of drive adjustment with depth lock
Quick slide button bit change

Powered by an efficient brushless motor, this high torque collated screw gun includes an extended life 4.0Ah battery and a variable speed selector for heavy steel, and a quick release feed system with our patented corner fit technology. The DS322-18V also features feed on return - the next screw is...

EXPLORE COMPATIBLE FASTENERS

FEATURES
SPECS
Bits
FASTENERS
similar products

10C0002N

DS322-18V

3" 2500 RPM Cordless Collated Screwdriver

Manual Parts Chart

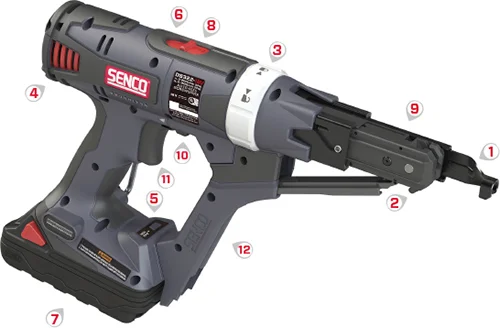

Features

CORNER-FIT FEED SYSTEM

Improved line of sight and better corner access

FEED ON RETURN

Screws are in place before you drive for faster and more consistent performance

REMOVABLE FEED SYSTEM

Detachable feed system for easier reversing

HIGH TORQUE BRUSHLESS MOTOR

Provides increased performance and battery life with reduced size

SPEED SELECTION BUTTON (1600 RPM)

Quickly decrease the maximum speed for heavy steel applications

ADJUSTABLE DEPTH-OFDRIVE WITH DEPTH LOCK

For consistent flush drive or countersink (knob is on the reverse side, not shown)

EXTENDED LIFE 4.0AH LI-ION BATTERY

Uses latest cell technology for increased power and capacity

QUICK SLIDE BIT RELEASE

Easily insert or remove bits

1”- 3” TOOL FREE ADJUSTABLE NOSE PIECE

Single nosepiece for wood and drywall applications with easy to read length markings

QUICK TOGGLE REVERSE SWITCH

Easily switch between forward and reverse

VARIABLE SPEED TRIGGER

Change RPMs for self-tapping screws into steel

PATENTED SCREW GUIDE

Prevents screw binding for consistent feeding

Applications

High torque applications including flooring
Decking
Docks
Crating
Gypsum/sheathing to heavy steel
Tile Roofing

SPECIFICATIONS

Item #: 10C0002N
Tool Weight: 5.68 lbs (2.58 kgs)
Height: 9.59" (243.59 mm)
Length: 14.52" (368.81 mm)
Width: 3.36" (85.34 mm)
Warranty: 5 years
Battery: 4.0Ah 18V Li-Ion Battery

Fasteners Per Charge: 2500
Technology: DURASPIN
Trigger Type: Variable with Lock
Range: 1" - 3"
Screw Diameteres: #6 - #12
RPM: 2500
Includes: (2) Drive Bits EA0400, EA0401, 4.0Ah Li-Ion Extended Life Battery, Charger, and Storage Bag

Bits

Compatible Bits

EA0400Phillips Bit

EA0401Square Bit

EA0402Rex Bit

FASTENERS

Compatible Fasteners

Application: Wood to Heavy Steel
Diameter: #8
Range: 2
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Wing Drill
Head: Wafer + Nibs

Application: Wood to Wood
Diameter: #8
Range: 1-1/4
Thread: Coarse
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat

Application: Wood to Wood
Diameter: #8
Range: 1-1/2" - 3"
Thread: Coarse
Finish: Yellow Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat

Application: Wood to Heavy Steel
Diameter: #12
Range: 1-3/4
Thread: Fine
Finish: Yellow Zinc
Quantity: 1000
Drive Type: Rex
Point: Wing T3 Drill
Head: Flat

Application: Wood to Heavy Steel
Diameter: #8
Range: 2
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Pilot
Head: Flat

Application: Wood to Heavy Steel
Diameter: #8
Range: 1-5/8
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Wing Drill
Head: Wafer + Nibs

Application: Metal to Metal
Diameter: #10
Range: 1
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Drill
Head: Mod Flat Pan

Application: Gypsum to Heavy Steel
Diameter: #6
Range: 1-1/4" - 3"
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Drill
Head: Bugle

Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Brown
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan

Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Tan
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan

Application: Decking And Docks
Diameter: #8
Range: 2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat

Application: Wood to Light Steel
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat

Application: Wood to Wood
Diameter: #8
Range: 1-3/4
Thread: Coarse
Finish: Yellow Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat

Application: Wood to Wood
Diameter: #8
Range: 2
Thread: High Low
Finish: Yellow Zinc
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs

Application: Wood to Heavy Steel
Diameter: #12
Range: 2" - 2-1/2"
Thread: Fine
Finish: Yellow Zinc
Quantity: 1000
Drive Type: Rex
Point: Wing T5 Drill
Head: Flat

Application: Wood to Heavy Steel
Diameter: #10
Range: 1-1/4
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer

Application: Specialty
Diameter: #8
Range: 1-1/4
Thread: Coarse
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Round Washer

Application: Gypsum to Heavy Steel
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle

Application: Gypsum to Heavy Steel
Diameter: #6
Range: 1-1/4" - 2"
Thread: Fine
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle

Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Gray
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan

Application: Composite Decking
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Trim

Application: Decking And Docks
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: 304 Stainless Steel
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Flat

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08G200WTWFWS	2	#8	Fine	Square	Wing Drill	Wafer + Nibs	Exterior	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08L125CBLCTS	1-1/4	#8	Coarse	Square	Cut (Type 17)	Flat	Clear Zinc	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08F150Y	1-1/2	#8	Coarse	Square	Sharp	Flat	Yellow Zinc	1000
08F175Y	1-3/4	#8	2/3 Coarse	Square	Sharp	Flat	Yellow Zinc	1000
08F200Y	2	#8	2/3 Coarse	Square	Sharp	Flat	Yellow Zinc	1000
08F250Y	2-1/2	#8	2/3 Coarse	Square	Sharp	Flat	Yellow Zinc	800
08F300Y	3	#8	2/3 Coarse	Square	Sharp	Flat	Yellow Zinc	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
12G175YKLFAX	1-3/4	#12	Fine	Rex	Wing T3 Drill	Flat	Yellow Zinc	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08G200CKLFPS	2	#8	Fine	Square	Pilot	Flat	Clear Zinc	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08G162CTWFWS	1-5/8	#8	Fine	Square	Wing Drill	Wafer + Nibs	Clear Zinc	1000
10G162CTWFWS	1-5/8	#10	Fine	Square	Wing Drill	Wafer + Nibs	Clear Zinc	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
10M100CKMFDS	1	#10	Fine	Square	Drill	Mod Flat Pan	Clear Zinc	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
06C125WK	1-1/4	#6	Fine	Phillips	Drill	Bugle	Exterior	1000
06C162WK	1-5/8	#6	Fine	Phillips	Drill	Bugle	Exterior	1000
08C300WK	3	#8	2/3 Fine	Phillips	Drill	Bugle	Exterior	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08S250W497	2-1/2	#8	Multi-Thread	Square	Sharp	Cupped Pan	Exterior Brown	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08S250W592	2-1/2	#8	Multi-Thread	Square	Sharp	Cupped Pan	Exterior Tan	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08D200W	2	#8	2/3 Coarse	Square	Cut (Type 17)	Flat	Exterior	1000
08D250W	2-1/2	#8	2/3 Coarse	Square	Cut (Type 17)	Flat	Exterior	800
08D300W	3	#8	2/3 Coarse	Square	Cut (Type 17)	Flat	Exterior	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08G150CTLDSS	1-1/2	#8	Double	Square	Sharp	Flat	Clear Zinc	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08L175YB	1-3/4	#8	Coarse	Square	Cut (Type 17)	Flat	Yellow Zinc	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08F200YBTHSS	2	#8	High Low	Square	Sharp	Trim Head + Nibs	Yellow Zinc	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
12G200YKLFCX	2	#12	Fine	Rex	Wing T5 Drill	Flat	Yellow Zinc	1000
12G250YKLFCX	2-1/2	#12	Fine	Rex	Wing T5 Drill	Flat	Yellow Zinc	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
10G125CBWFDS	1-1/4	#10	Fine	Square	Drill	Wafer	Clear Zinc	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08X125CBACTS	1-1/4	#8	Coarse	Square	Cut (Type 17)	Round Washer	Clear Zinc	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
06C125CB	1-1/4	#6	Fine	Phillips	Drill	Bugle	Clear Zinc	4000
06C162CB	1-5/8	#6	Fine	Phillips	Drill	Bugle	Clear Zinc	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
06C125PB	1-1/4	#6	Fine	Phillips	Drill	Bugle	Gray Phosphate	4000
06C162PB	1-5/8	#6	Fine	Phillips	Drill	Bugle	Gray Phosphate	4000
06C200PB	2	#6	Fine	Phillips	Drill	Bugle	Gray Phosphate	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08S250W003	2-1/2	#8	Multi-Thread	Square	Sharp	Cupped Pan	Exterior Gray	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08R250W	2-1/2	#8	2/3 Coarse	Square	Cut (Type 17)	Trim	Exterior	800
08R300W	3	#8	2/3 Coarse	Square	Cut (Type 17)	Trim	Exterior	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08D250S	2-1/2	#8	2/3 Coarse	Square	Cut (Type 17)	Flat	304 Stainless Steel	800
09D300S	3	#9	2/3 Coarse	Square	Cut (Type 17)	Flat	304 Stainless Steel	800
