10X0002N

DS530-S1

3” Collated Screwdriver Attachment

SHARE Facebook Share Twitter Share Linkedin Share Print

Feed On Return
Patented Sliding Screw Guide
Corner-Fit Feed System
Quick Release Clamp
Extension Pole

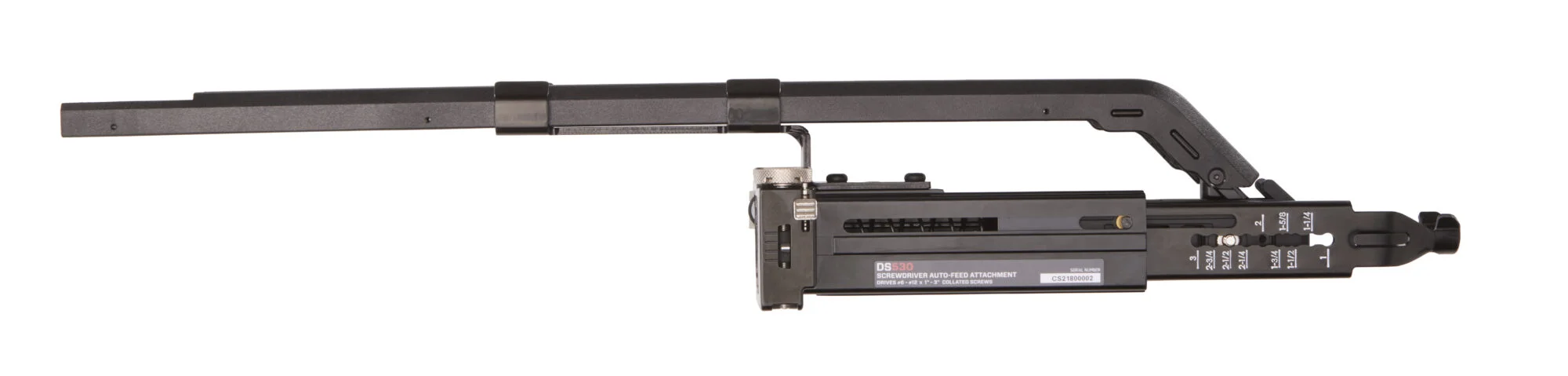

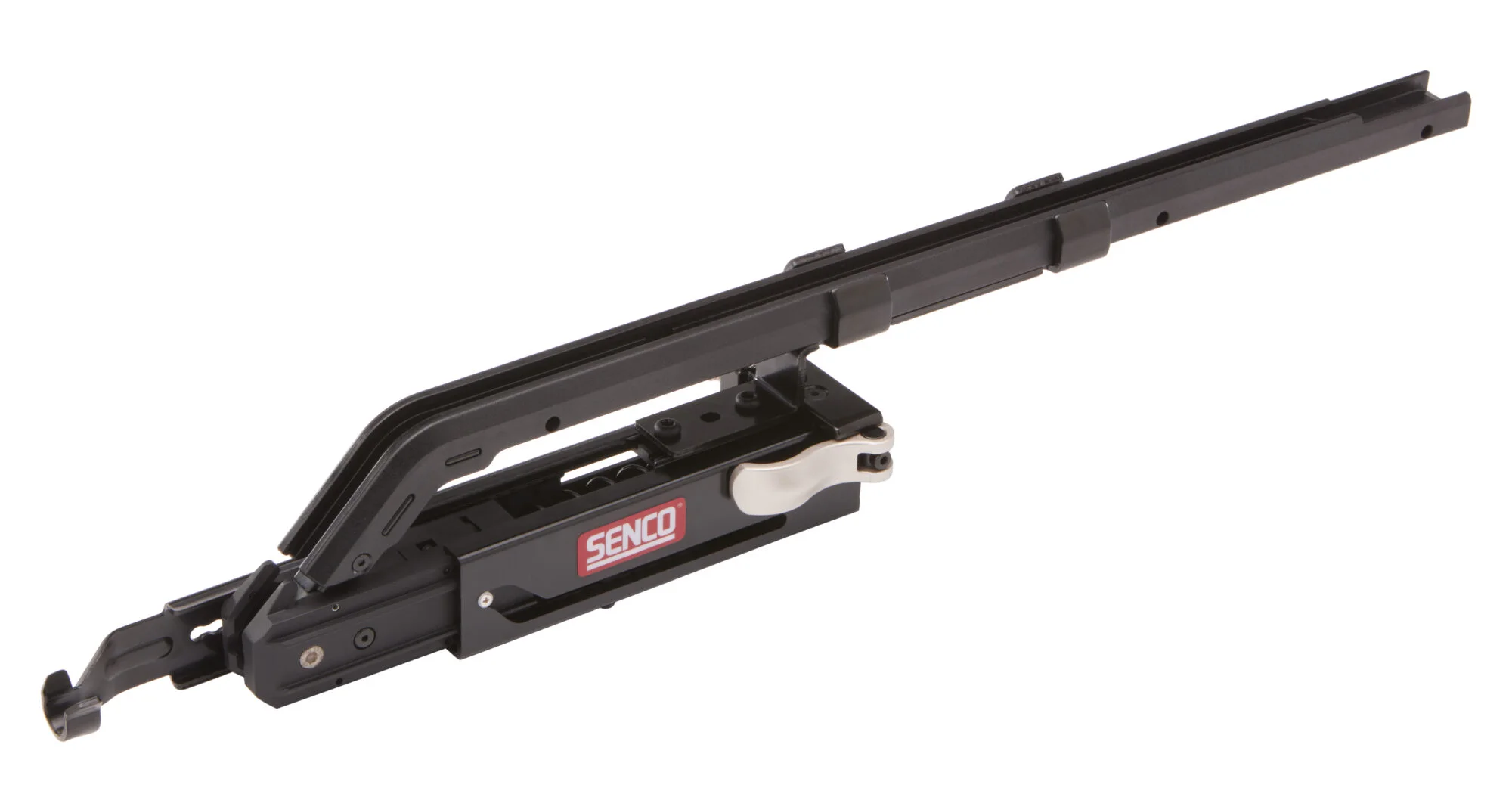

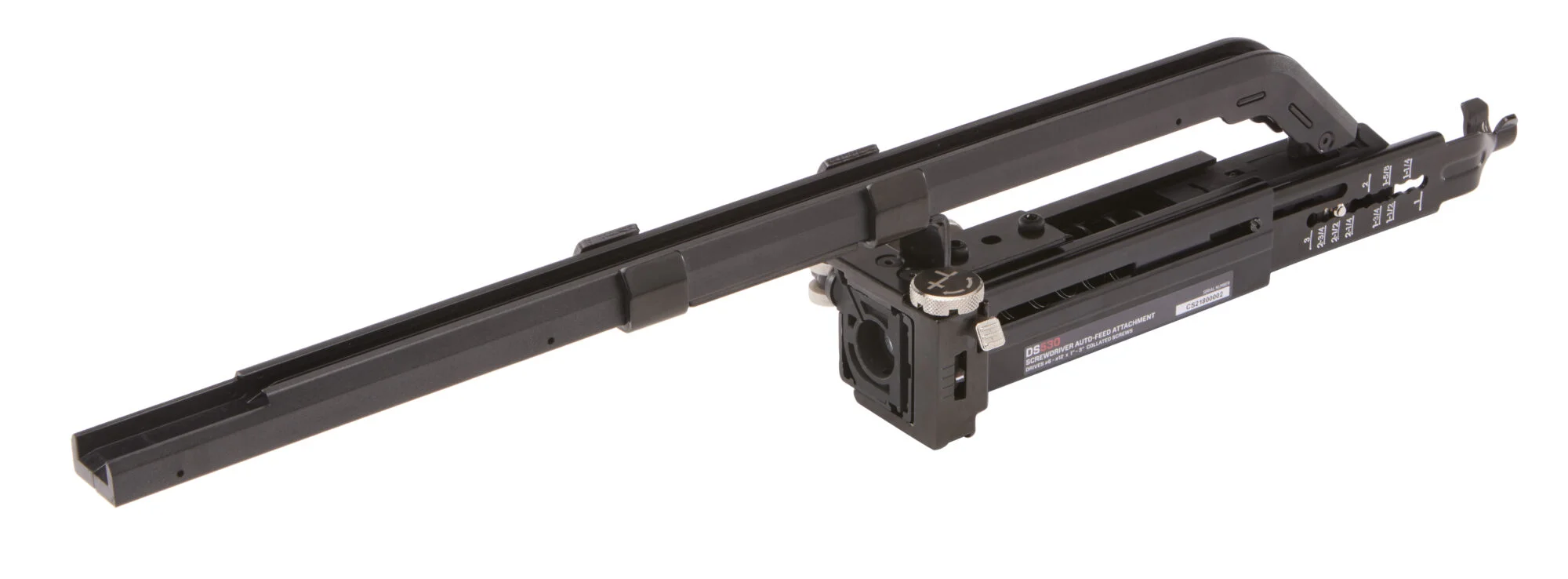

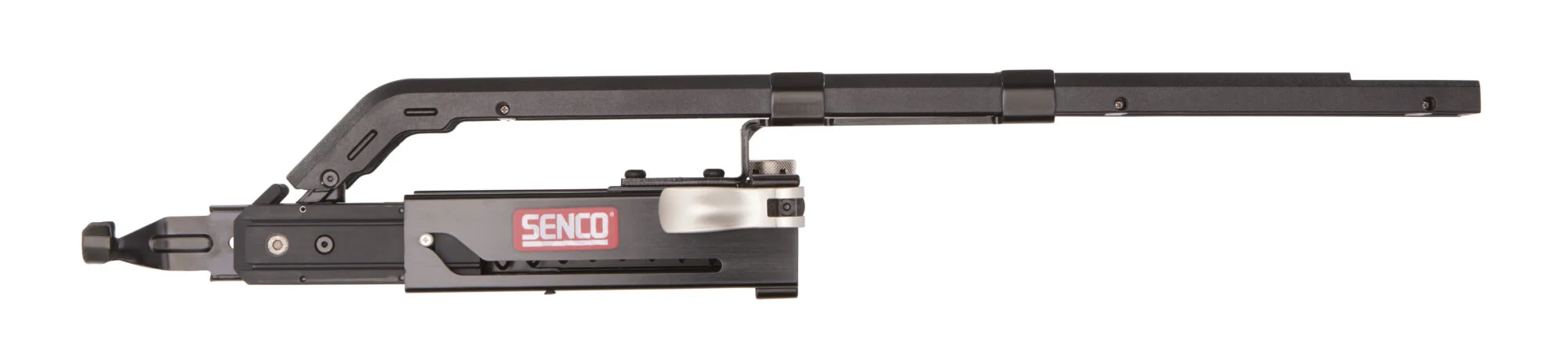

The DS530 collated screwdriver attachments are perfect for those looking to extend the reach of their existing power screwdrivers. The included extension pole turns your screwdriver into a stand-up tool, making it ideal for applications such as laying subfloor, underlayment, decking, cement board, and sheathing to steel. Capable of driving...

EXPLORE COMPATIBLE FASTENERS

FEATURES
SPECS
Bits
FASTENERS
similar products

10X0002N

DS530-S1

3” Collated Screwdriver Attachment

Manual Parts Chart

Features

FEED ON RETURN

Screws are in place before you drive for faster and more consistent performance

SLIDING SCREW GUIDE

Prevents screw binding ensuring consistent feeds

CORNER-FIT FEED SYSTEM

For better line of sight, easier operation, and excellent corner access

QUICK RELEASE CLAMP

Easily change or replace bits

EXTENSION POLE

Provides extended reach for standing applications

ADJUSTABLE DEPTH-OF-DRIVE WITH DEPTH LOCK

For consistent flush or countersink drives

STRIP FOLDBACK PROTECTION

Prevents empty strip from jamming the tool

TOOL-FREE ADJUSTABLE NOSEPIECE

Single nosepiece for wood and drywall applications, with easy-to-read length markings

ADJUSTABLE POWER GRIP HANDLE

Durable and rotates 360°

Applications

Sheathing
Decking
Underlayment
Sub-flooring
Steel decking
Drywall
Cement board
Rigid foam insulation

SPECIFICATIONS

Item #: 10X0002N
Tool Weight: 3.4 lbs (1.5 kgs)
Height: 3.5" (89 mm)
Length: 33" (838 mm)
Width: 2.75" (70 mm)
Warranty: 5 years

Technology: DURASPIN
Range: 1" - 3"
Power Type: Attachment
Screw Diameteres: #6 - #12
Includes: Auto-feed Attachment, Extension Pole, Adapter, Adjustable Handle, (3) Drive Bits: EA0314, EA0315, EA0316

Bits

Compatible Bits

EA0314Phillips Bit

EA0315Square Bit

EA0316Rex Bit

FASTENERS

Compatible Fasteners

Application: Underlayment
Diameter: #7
Range: 1
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Sharp
Head: Trim Head + Nibs

Application: Underlayment
Diameter: #7
Range: 1-1/4
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs

Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Brown
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan

Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Gray
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan

Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Tan
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan

Application: Composite Decking
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Trim

Application: Decking And Docks
Diameter: #8
Range: 2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat

Application: Decking And Docks
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: 304 Stainless Steel
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Flat

Application: Wood to Light Steel
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat

Application: Drywall to Wood
Diameter: #6
Range: 1-5/8
Thread: Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle

Application: Drywall to Wood
Diameter: #6
Range: 1-1/4" - 2-1/2"
Thread: Coarse
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle

Application: Cement Board
Diameter: #8
Range: 1-1/4" - 2"
Thread: High Low
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Spoon
Head: Wafer + Nibs

Application: Cement Board
Diameter: #8
Range: 1-1/2
Thread: Fine
Finish: Exterior
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer + Nibs

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
07Q100PB	1	#7	High Low	Phillips	Sharp	Trim Head + Nibs	Gray Phosphate	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
07Q125PBQ	1-1/4	#7	High Low	Square	Sharp	Trim Head + Nibs	Gray Phosphate	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08S250W497	2-1/2	#8	Multi-Thread	Square	Sharp	Cupped Pan	Exterior Brown	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08S250W003	2-1/2	#8	Multi-Thread	Square	Sharp	Cupped Pan	Exterior Gray	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08S250W592	2-1/2	#8	Multi-Thread	Square	Sharp	Cupped Pan	Exterior Tan	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08R250W	2-1/2	#8	2/3 Coarse	Square	Cut (Type 17)	Trim	Exterior	800
08R300W	3	#8	2/3 Coarse	Square	Cut (Type 17)	Trim	Exterior	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08D200W	2	#8	2/3 Coarse	Square	Cut (Type 17)	Flat	Exterior	1000
08D250W	2-1/2	#8	2/3 Coarse	Square	Cut (Type 17)	Flat	Exterior	800
08D300W	3	#8	2/3 Coarse	Square	Cut (Type 17)	Flat	Exterior	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08D250S	2-1/2	#8	2/3 Coarse	Square	Cut (Type 17)	Flat	304 Stainless Steel	800
09D300S	3	#9	2/3 Coarse	Square	Cut (Type 17)	Flat	304 Stainless Steel	800

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08G150CTLDSS	1-1/2	#8	Double	Square	Sharp	Flat	Clear Zinc	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
06A162W	1-5/8	#6	Coarse	Phillips	Sharp	Bugle	Exterior	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
06A125P	1-1/4	#6	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	1000
06A125PB	1-1/4	#6	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	4000
06A162P	1-5/8	#6	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	1000
06A162PB	1-5/8	#6	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	4000
07A200P	2	#7	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	1000
08A250PK	2-1/2	#8	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08T125W	1-1/4	#8	High Low	Square	Spoon	Wafer + Nibs	Exterior	1000
08T200W	2	#8	High Low	Square	Spoon	Wafer + Nibs	Exterior	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08T150WBWFDS	1-1/2	#8	Fine	Square	Drill	Wafer + Nibs	Exterior	4000
