FramePro®752XP SL Series
3-1/2" 21° SmartLoad Framing Nailer
Applications
- Mounted Framing
Fasteners Driven
- Collation 21° Angled plastic strip
- Length 2" - 3-1/2"
- Shank .120" - .162"

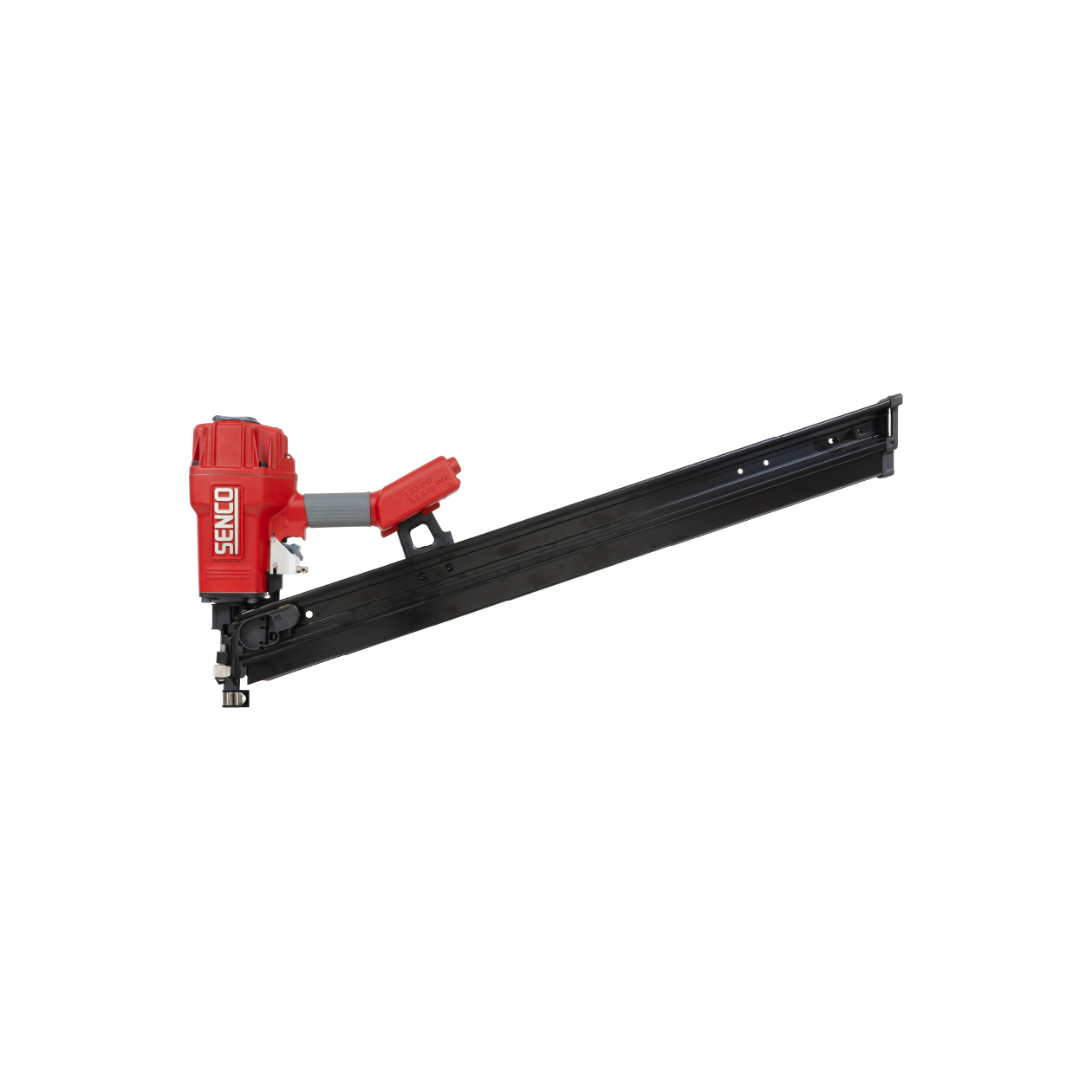

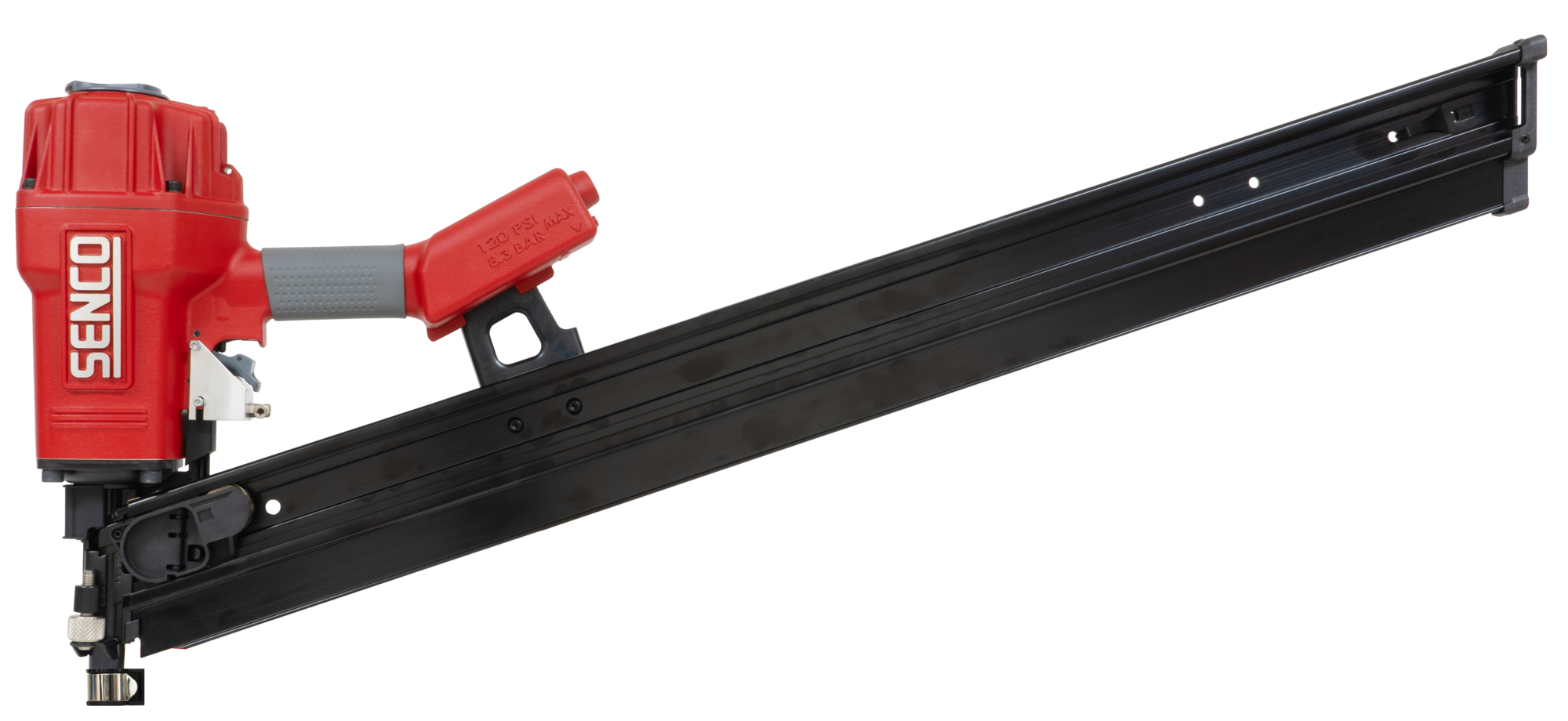

2F0162N
Standard Safety Mechanism
This tool is intended for applications where the system uses the standard safety mechanism included on the tool. The system must advance the tool into the workpiece prior to activating the trigger. This tool features a positive external remote fire trigger block.

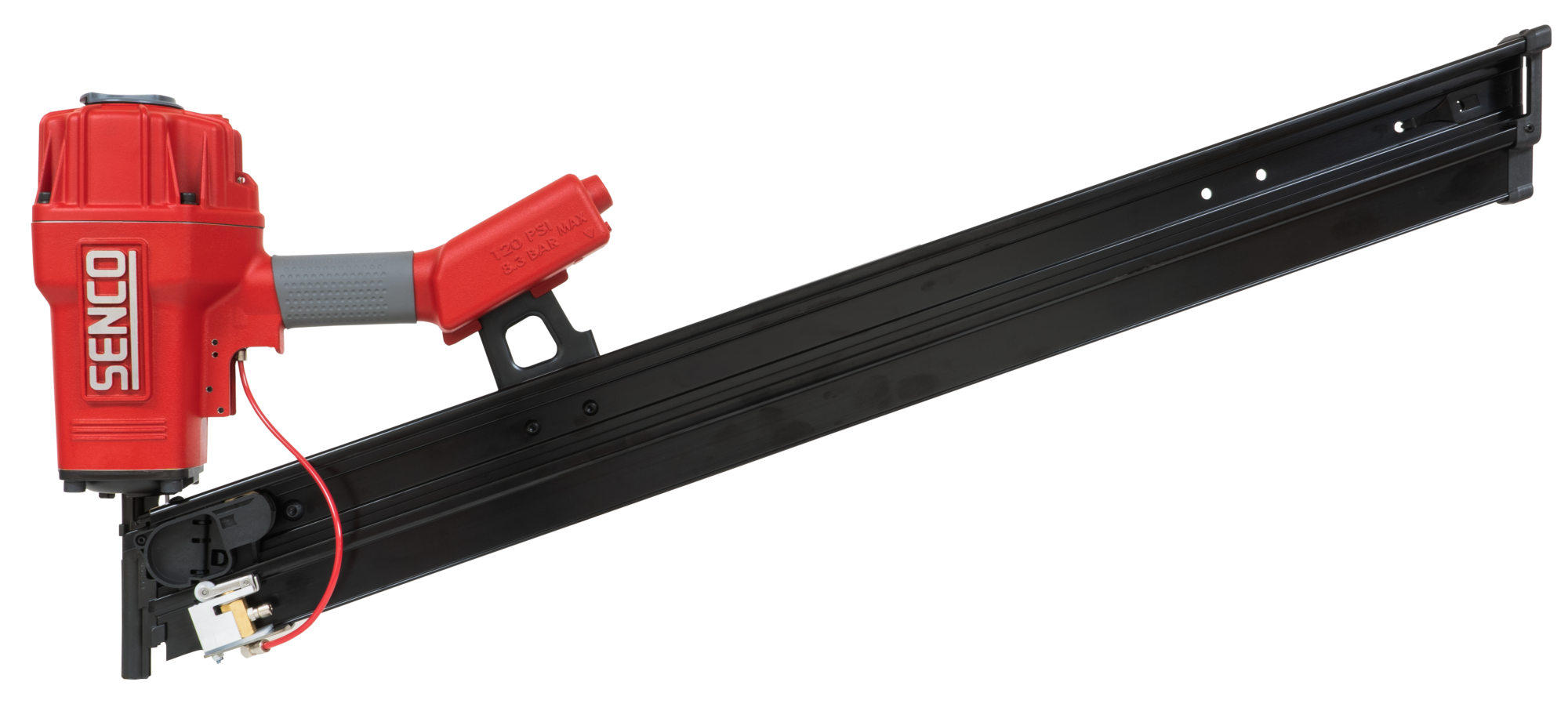

2F0160N
Pneumatic Reload Indicator
This tool is intended for applications where the system hovers the tool over the work surface. A secondary material sensor should be utilized for safety. This tool features a positive internal valve actuator remote fire trigger. The trigger air routes through a pneumatic reload indicator that shuts off the trigger air when reloading is necessary.

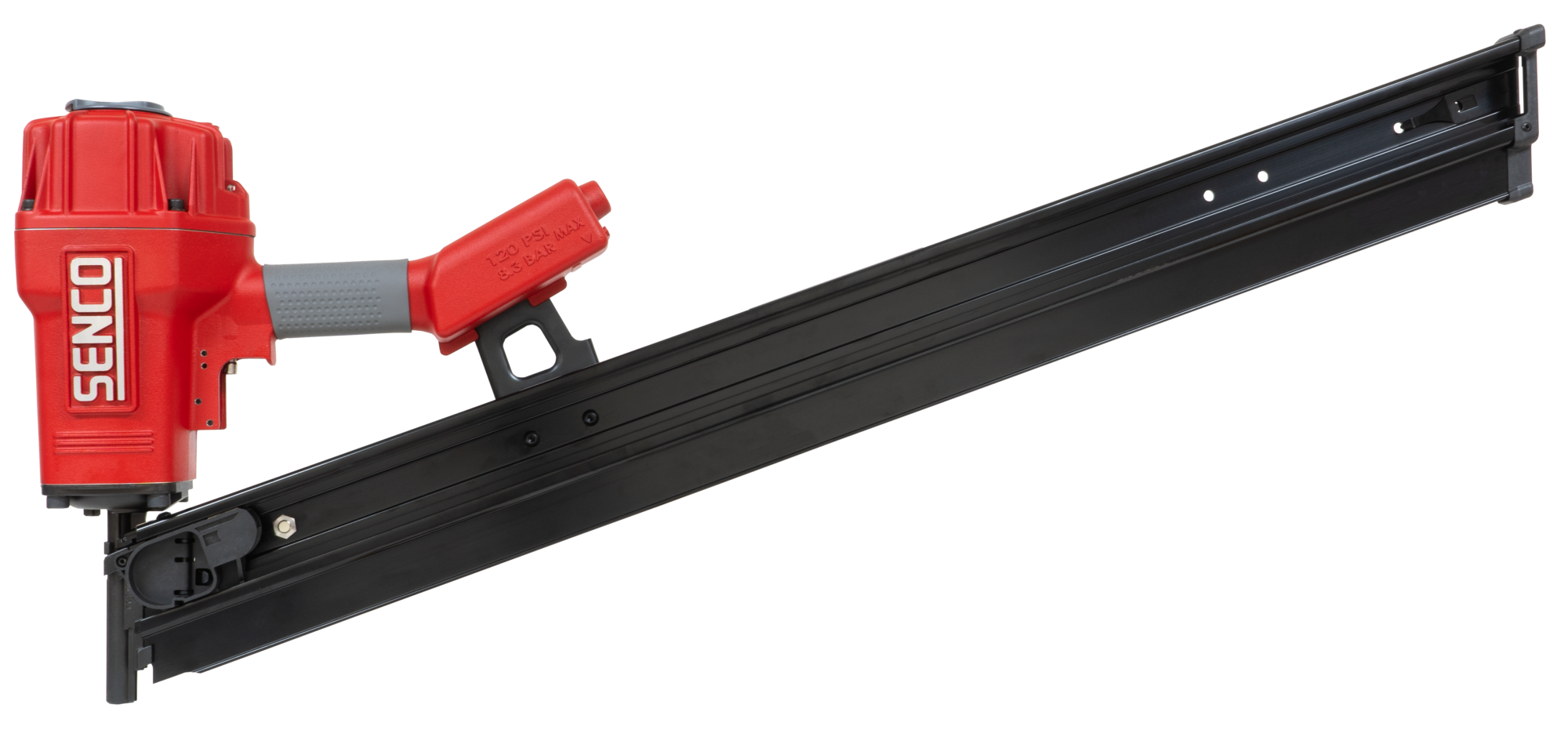

2F0161N
Electronic Reload Indicator
This tool is intended for applications where the system hovers the tool over the work surface. A secondary material sensor should be utilized for safety. This tool is outfitted with a positive internal valve actuator remote fire trigger. PNP and NPN options are available.
FramePro®752XP SL Series
Tool-Free Depth Adjustment
For consistent flush or countersunk drives
Positive Remote Fire Trigger
Tool is actuated by a pneumatic signal
UPGRADED INTERNAL FEATURES
Includes anodized sleeve, urethane sleeve cap, fixed firing valve, and a positive stop guide body that aligns nail and driver for a consistent drive
Dual Length Magazine
Capable of holding up to 140 framing nails
POWERFUL
Consistently drives a full range of nails
No-mar Pad
Protects the work surface
Rotating Exhaust
Direct expelled air away from electrical components
TOOL SPECIFICATIONS
- Tool Weight: 10.5 lbs (4.7 kgs)
- Height: 14.785" (375.5 mm)
- Length: 36.855" (936.1 mm)
- Width: 4.488" (113.9 mm)
- Power Type: PNEUMATIC
- Trigger Type: Positive Remote Fire Trigger
- Main Body Material: Aluminum
- Capacity: 140
- Fastener Diameter: 0.12" - 0.162"
- Fastener Range: 2" - 3-1/2"
- Operating Pressure: 70 - 120 PSI (4.8 - 8.3 Bar)
- Air Consumption: 11 SCFM
- Air Inlet NPT: 3/8"
Trigger Specifications
- Tool Model: 2F0162N
- Operating Pressure: 55 to 60 PSI
- Air Hose: 5/32" or 4mm
- Tool Model: 2F0160N
- Operating Pressure: 80-100 PSI
- Air Hose: 5/32" or 4mm
- Tool Model: 2F0161N
- Operating Pressure: 80-100 PSI
- Air Hose: 5/32" or 4mm
FASTENERS
Compatible Fasteners
Type: 21° Angled Strip Full Round Head Ring Shank Plastic Collated Nails
Degree: 21°
Range: 2" - 3"
Collation: 21° Angled Strip
Degree: 21°
Range: 2" - 3"
Collation: 21° Angled Strip
Type: 21° Angled Strip Full Round Head Smooth Shank Plastic Collated Nails
Degree: 21°
Range: 2-3/8" - 3-1/2"
Collation: 21° Angled Strip
Degree: 21°
Range: 2-3/8" - 3-1/2"
Collation: 21° Angled Strip
