SCN65XP

Degree/Gauge Icon

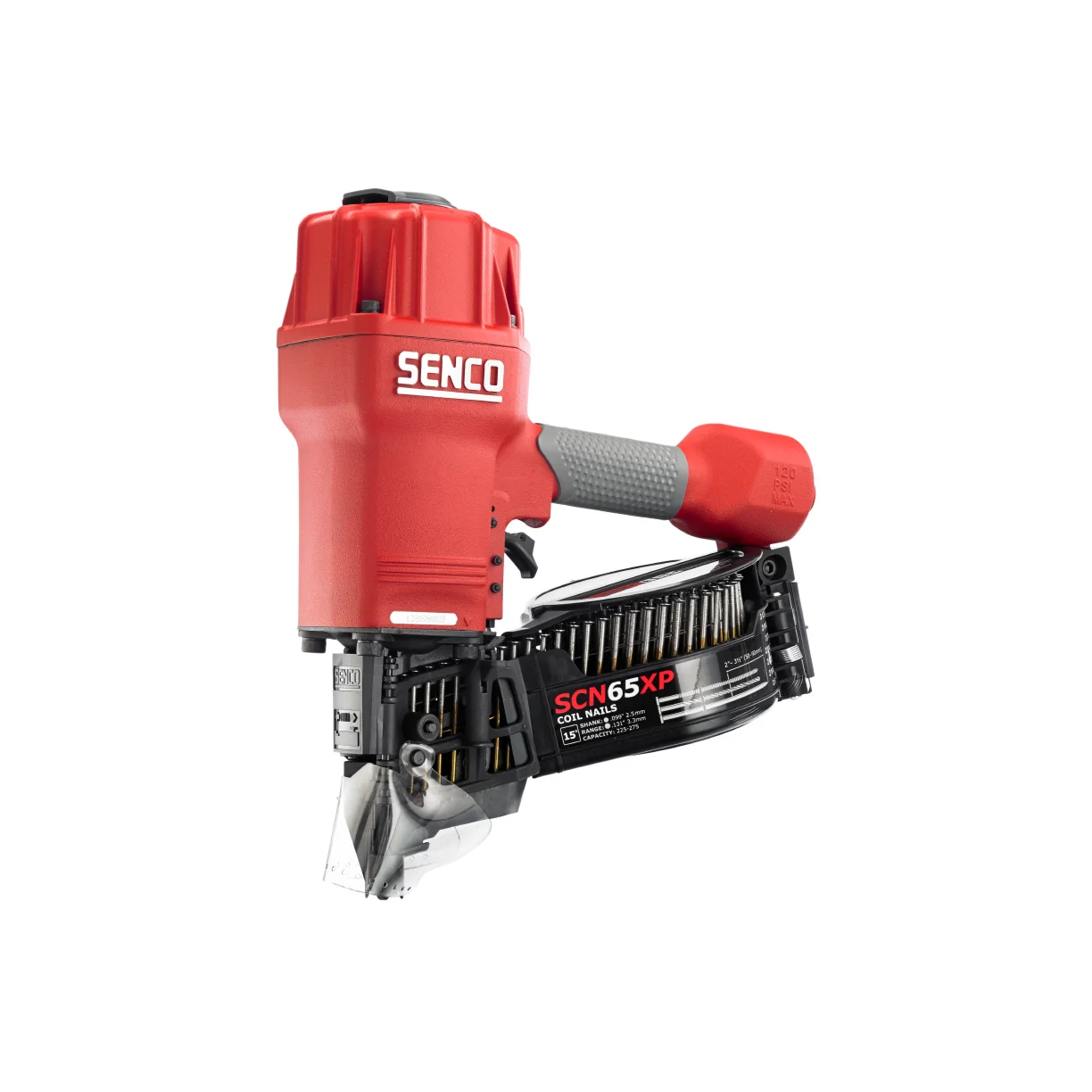

3-1/2" Coil Nailer

SHARE Facebook Share Twitter Share Linkedin Share Print

With the highest power-to-weight ratio in its class, the SCN65XP is light enough for one-handed use while still having the power to drive up to 3-½” 15-degree coil nails into a variety of materials. Holding up to 275 nails, the magazine is super easy to load, minimizing downtime and maximizing...
read more
EXPLORE COMPATIBLE FASTENERS
540104N

SCN65XP

3-1/2" Coil Nailer

Manual Parts Chart
Features
1

Highest Power-to-weight Ratio in Its Class

2

High Capacity Magazine

Holds up to 275 fasteners

3

Tool-free Depth Adjustment

For consistent flush or countersunk drives

4

Clear Magazine Door

Makes it easy to see when you need to reload.

5

Debris Shield

Protects the user and work surface during use

6

360° Adjustable Exhaust

Directs air away from the operator or worksurface

7

Ergonomic Overmolded Grip

Reduces fatigue and increases control of the tool

Applications
  • Sheathing
  • Decking
  • Subflooring
  • Exterior Decks
  • Pallet Construction
  • Pallet Repair
  • Crate and Box Assembly

SPECIFICATIONS

  • Item #: 540104N
  • Tool Weight: 8 lbs (3.6 kgs)
  • Height: 14.1" (359 mm)
  • Length: 12.88" (327 mm)
  • Width: 5.38" (137 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Contact Actuation
  • Capacity: 225 - 275
  • Diameter: 0.099" - 0.131"
  • Range: 2" - 3-1/2"
  • Power Type: Pneumatic
  • Operating Pressure: 70 - 120 PSI (4.8 - 8.3 Bar)
  • Air Consumption: 9.54 SCFM
  • Air Inlet NPT: 3/8"

FASTENERS

Compatible Fasteners
Type: 15° Ring Shank Coil Nails
Degree: 15°
Range: 2" - 3"
Collation: 15° Angled Wire Coil
Type: 15° Screw Shank Coil Nails
Degree: 15°
Range: 2" - 3"
Collation: 15° Angled Wire Coil
Type: 15° Smooth Shank Coil Nails
Degree: 15°
Range: 2" - 3-1/2"
Collation: 15° Angled Wire Coil
